·Material: Stainless Steel fiber polyester
·Yarn count:30S/2, 40S/3, 150D/2, 120D/3, 210D/3, etc.
·Package: 100g/roll
Description:

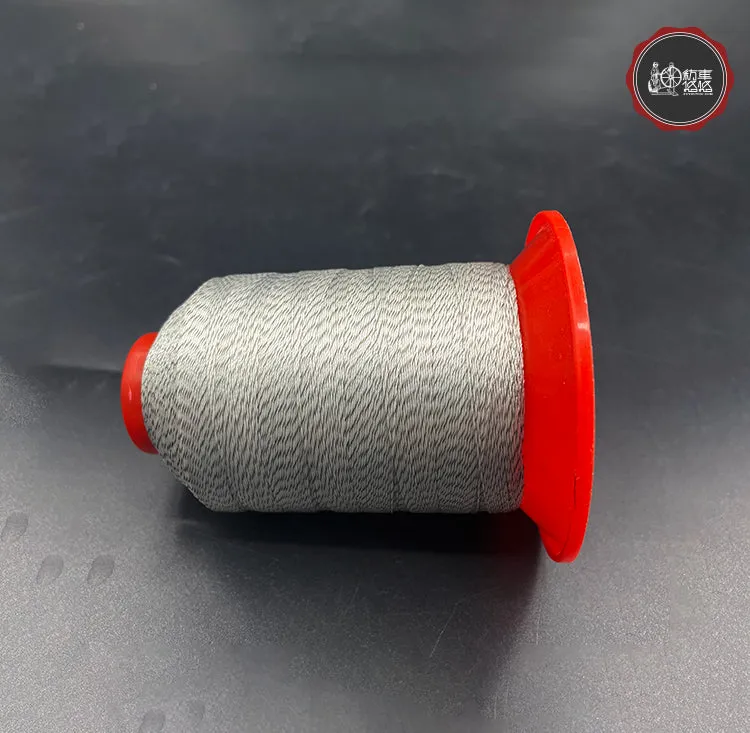

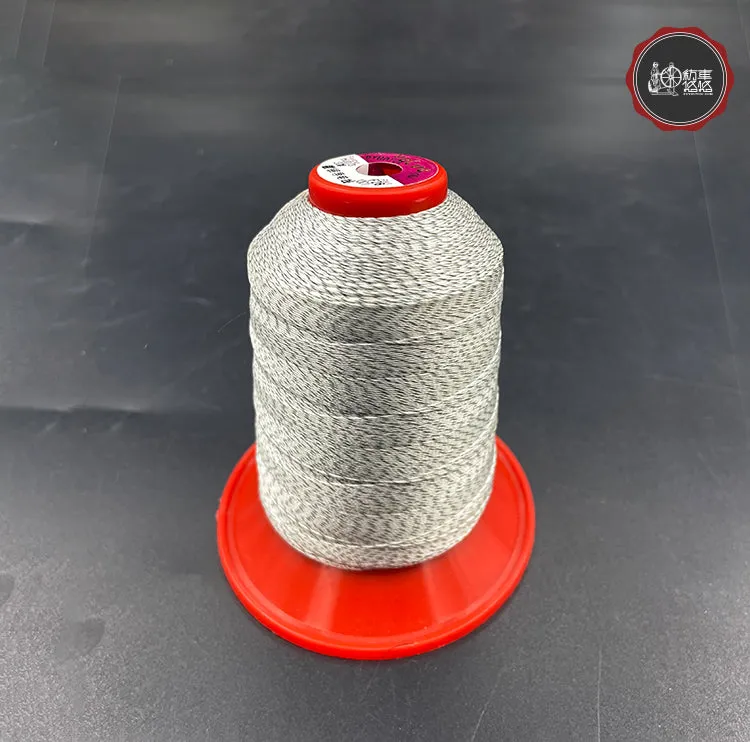

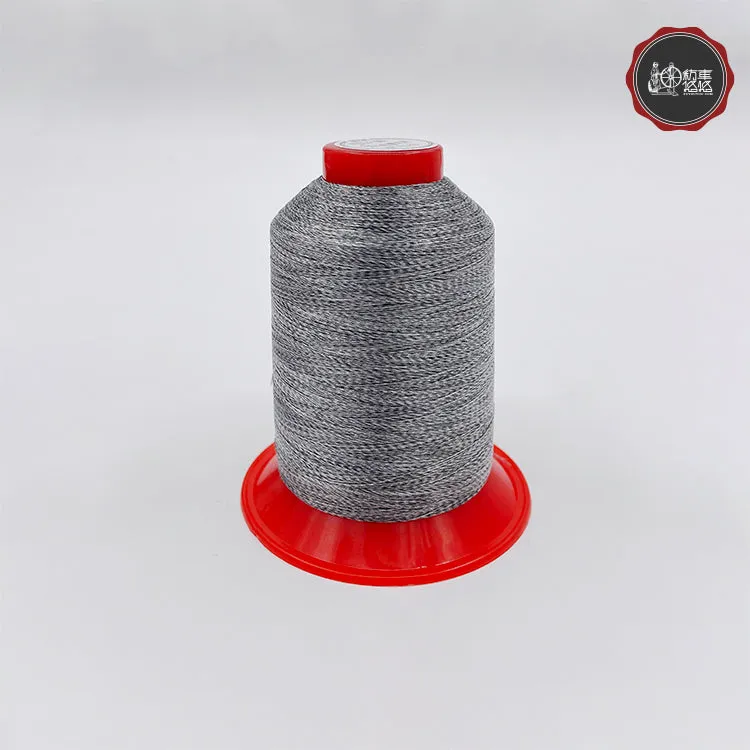

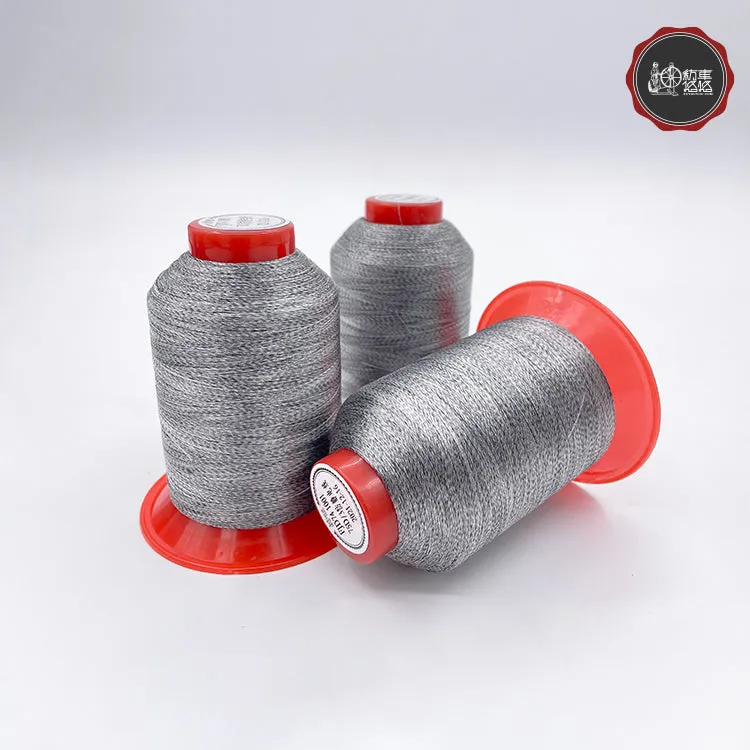

Dongguan Velve Thread Manufactury presents Stainless Steel Conductive Thread, crafted by twisting stainless fiber filament and polyester filament. This high-performance sewing thread boasts a smooth surface, high strength, and excellent passability on sewing machines, ensuring it is not easy to break. Additionally, our Stainless Steel Conductive Thread offers sensitive conductivity, meeting the stringent anti-static performance requirements for anti-static clothing. Trust in our innovative threads for reliable and efficient solutions in demanding applications.
Features:
1. Conductive, surface Resistivity:10³Ω - 10⁶Ω
2. High conductivity
3. Durable
4. Excellent sewability and high strength
5. Anti-static
| Yarn Count | Tensile Peak (Kgf) |
Strength (Mpa) |
Weight/Roll | Diameter (mm) |
Length/Roll (m) |
| 30S/1 | 0.3365 | 4.27 | 100g | 0.12 | 4950 |
| 28S/1 | 0.313 | 3.905 | 100G | 0.13 | 4900 |
| 20S/1 | 0.4355 | 5.295 | 100g | 0.15 | 3500 |
| 150D/2 | 1.35 | 16.88 | 100g | 0.18 | 2700 |
| 30S/2 | 0.666 | 8.32 | 100g | 0.19 | 2560 |
| 30S/1 30S/1 | 1.16 | 14.48 | 100g | 0.22 | 2500 |
| 30S/2 | 0.666 | 8.32 | 100g | 0.22 | 2475 |
| 120D/3 | 1.64 | 20.465 | 100g | 0.23 | 2400 |
| 27S/2 | 0.771 | 9.32 | 100g | 0.24 | 2350 |
| 40S/3 | 1.163 | 14.07 | 100g | 0.26 | 2000 |
| 275D/2 | 1.351 | 16.86 | 100g | 0.26 | 3640 |
| 25S/2 | 0.626 | 7.81 | 100g | 0.27 | 1800 |
| 150D/3 | 1.81 | 22.62 | 100g | 0.27 | 1800 |
| 30S/3 | 1.728 | 21.56 | 100g | 0.29 | 1650 |
| 20S/2 | 0.905 | 11.29 | 100g | 0.29 | 1650 |
| 250D/5 | 3.204 | 39.98 | 100g | 0.29 | 1650 |
| 250D 0.03*2 | 3.245 | 40.49 | 100g | 0.3 | 1500 |
| 20S/3 | 2.22 | 27.75 | 100G | 0.31 | 1200 |
| 210D/3 | 1.974 | 24.63 | 100G | 0.315 | 1200 |
| 210D/3 | 2.844 | 35.49 | 100g | 0.315 | 1200 |
| 20S/3 6 | 2.757 | 34.4 | 100G | 0.32 | 1100 |
| 20S/3 10 | 3.09 | 38.56 | 100G | 0.33 | 1050 |
| 20S/3 12 | 3.68 | 45.92 | 100G | 0.34 | 1000 |
| 250D/3 | 3.245 | 40.49 | 100g | 0.34 | 1000 |
| 275D/1 | 1.146 | 14.295 | 100g | 0.34 | 1000 |
| 250D/2 20S/1 | 3.145 | 39.49 | 100g | 0.36 | 850 |
| 20S/4 | 2.699 | 33.675 | 100g | 0.37 | 800 |
| 250D/4 | 3.59 | 44.86 | 1KG | 0.48 | 700M |
| 250D/4 20S/1 | 4.0235 | 50.205 | 100g | 0.48 | 700 |
| 250D/4 | 2.949 | 36.795 | 100g | 0.48 | 700 |
| 420D/3 | 5.167 | 64.48 | 100g | 0.5 | 600 |
| 30S/2*4 | 2.616 | 30.82 | 100g | 0.5 | 600 |
| 500D/3 | 4.99 | 62.3 | 100g | 0.52 | 500 |
